Marka: Turan Borfit

Dirsek 30° (Konfeksiyon) (SDR11) · PE100 SDR11 16bar (su) / 10bar (gaz)

Anasayfa/Ürünler/Konfeksiyon (Segmented) Ek Parçalar/Dirsek 30°/Dirsek 30° (Konfeksiyon) (SDR11) · PE100 SDR11 16bar (su) / 10bar (gaz)

Konfeksiyon (Segmented) Ek Parçalar

Dirsek 30°

SU: 16 bar · GAZ: 10 bar

Seçili: 75-30 · 20301160075-030

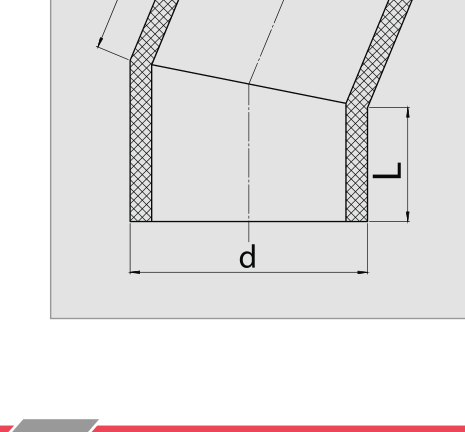

d	Norm	D2	L	h1	Z	R	Birim Ağırlık (kg)	Ürün Kodu
75-30	EN	4.58	100.00	1.05	120.00	0.60	0.32	20301160075-030
90-30	EN	5.49	100.00	1.26	124.00	0.72	0.47	20301160090-030
110-30	EN	6.71	150.00	1.54	179.00	0.88	1.03	20301160110-030
125-30	IPS	7.63	150.00	1.75	183.00	1.00	1.36	20301160125-030
140-30	IPS	8.54	150.00	1.96	188.00	1.12	1.72	20301160140-030
160-30	IPS	9.76	150.00	2.24	193.00	1.28	2.29	20301160160-030
180-30	IPS	10.98	150.00	2.52	198.00	1.44	2.93	20301160180-030
200-30	IPS	12.20	150.00	2.80	204.00	1.60	3.68	20301160200-030
225-30	IPS	13.73	150.00	3.15	210.00	1.80	4.72	20301160225-030
250-30	IPS	15.26	200.00	3.50	267.00	2.00	7.57	20301160250-030
280-30	IPS	17.09	200.00	3.92	275.00	2.24	9.64	20301160280-030
315-30	IPS	19.22	200.00	4.41	284.00	2.52	12.39	20301160315-030
355-30	IPS	21.66	240.00	4.97	335.00	2.84	18.69	20301160355-030
400-30	IPS	24.41	240.00	5.60	347.00	3.20	24.24	20301160400-030
450-30	IPS	27.46	240.00	6.30	361.00	3.60	31.43	20301160450-030
500-30	IPS	30.51	240.00	7.00	374.00	4.00	39.60	20301160500-030
560-30	IPS	34.17	240.00	7.84	390.00	4.48	50.90	20301160560-030
630-30	IPS	38.44	240.00	8.82	409.00	5.04	66.20	20301160630-030
710-30	IPS	43.33	240.00	9.94	430.00	5.68	87.10	20301160710-030
800-30	IPS	48.82	250.00	11.20	464.00	6.40	118.52	20301160800-030
900-30	IPS	54.92	300.00	12.60	541.00	7.20	176.61	20301160900-030

Tüm ölçüler indikatif değerlerdir. Detaylı veriler için kataloğu inceleyiniz.
