Segmented Fittings

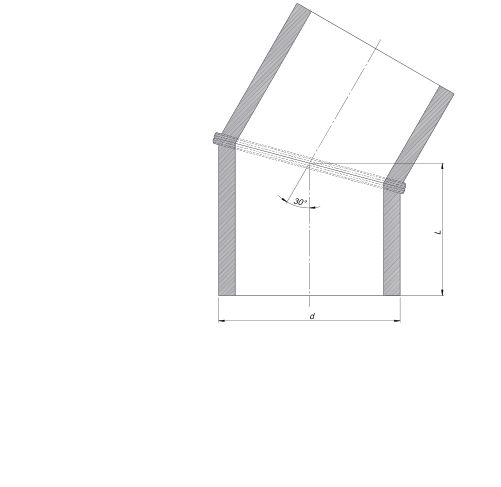

Elbow 30°
WATER: 16 bar · GAS: 64 bar
Selected: 355 · 975633100355
| d | Base Norm | D2 | L | h1 | R | Unit Weight (kg) | Item Code |
|---|---|---|---|---|---|---|---|
| 355 | IPS | 21.66 | 240.00 | 4.97 | 2.84 | 15.60 | 975633100355 |
| 400 | IPS | 24.41 | 250.00 | 5.60 | 3.20 | 20.65 | 975633100400 |
| 450 | IPS | 27.46 | 260.00 | 6.30 | 3.60 | 27.20 | 975633100450 |
| 500 | IPS | 30.51 | 270.00 | 7.00 | 4.00 | 34.83 | 975633100500 |
| 560 | IPS | 34.17 | 280.00 | 7.84 | 4.48 | 45.25 | 975633100560 |
| 630 | IPS | 38.44 | 320.00 | 8.82 | 5.04 | 65.28 | 975633100630 |
| 710 | IPS | 43.33 | 340.00 | 9.94 | 5.68 | 88.40 | 975633100710 |
| 800 | IPS | 48.82 | 370.00 | 11.20 | 6.40 | 125.06 | 975633100800 |
| 900 | IPS | 54.92 | 390.00 | 12.60 | 7.20 | 163.80 | 975633100900 |
| 1000 | IPS | 61.02 | 420.00 | 14.00 | 8.00 | 217.56 | 975633101000 |
| 1200 | IPS | 73.23 | 550.00 | 16.80 | 9.60 | 237.60 | 975633101200 |
| 1400 | IPS | 85.43 | 600.00 | 19.60 | 11.20 | 323.40 | 975633101400 |
| 1600 | IPS | 97.64 | 700.00 | 22.40 | 12.80 | 422.40 | 975633101600 |
All dimensions are indicative. Refer to the catalogue for full data.
