Elbow 11° (Fabricated) (SDR11) · PE100 SDR11 16bar (su) / 10bar (gaz)

Home/Products/Segmented Fittings/Elbow 11°/Elbow 11° (Fabricated) (SDR11) · PE100 SDR11 16bar (su) / 10bar (gaz)

Segmented Fittings

Elbow 11°

WATER: 16 bar · GAS: 10 bar

Selected: 90-11 · 20301160090-011

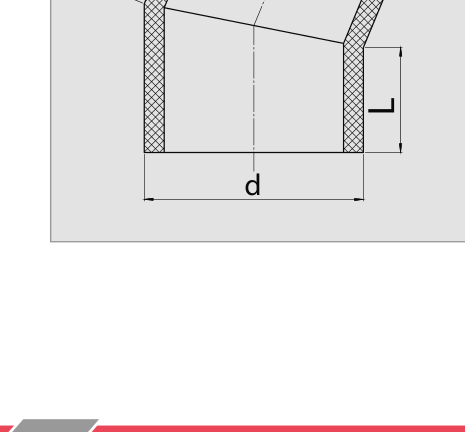

d	Base Norm	D2	L	h1	Z	R	Unit Weight (kg)	Item Code
90-11	EN	5.49	120.00	1.26	129.00	0.72	0.53	20301160090-011
110-11	EN	6.71	150.00	1.54	161.00	0.88	0.98	20301160110-011
125-11	IPS	7.63	150.00	1.75	162.00	1.00	1.27	20301160125-011
140-11	IPS	8.54	150.00	1.96	163.00	1.12	1.59	20301160140-011
160-11	IPS	9.76	150.00	2.24	165.00	1.28	2.10	20301160160-011
180-11	IPS	10.98	150.00	2.52	167.00	1.44	2.67	20301160180-011
200-11	IPS	12.20	150.00	2.80	169.00	1.60	3.32	20301160200-011
225-11	IPS	13.73	150.00	3.15	172.00	1.80	4.22	20301160225-011
250-11	IPS	15.26	200.00	3.50	224.00	2.00	6.87	20301160250-011
280-11	IPS	17.09	200.00	3.92	227.00	2.24	8.67	20301160280-011
315-11	IPS	19.22	200.00	4.41	230.00	2.52	11.01	20301160315-011
355-11	IPS	21.66	240.00	4.97	274.00	2.84	16.70	20301160355-011
400-11	IPS	24.41	240.00	5.60	279.00	3.20	21.43	20301160400-011
450-11	IPS	27.46	240.00	6.30	283.00	3.60	27.35	20301160450-011
500-11	IPS	30.51	240.00	7.00	288.00	4.00	34.06	20301160500-011
560-11	IPS	34.17	240.00	7.84	294.00	4.48	43.15	20301160560-011
630-11	IPS	38.44	240.00	8.82	301.00	5.04	55.18	20301160630-011
710-11	IPS	43.33	240.00	9.94	308.00	5.68	71.24	20301160710-011
800-11	IPS	48.82	250.00	11.20	327.00	6.40	95.78	20301160800-011
900-11	IPS	54.92	300.00	12.60	387.00	7.20	144.27	20301160900-011

All dimensions are indicative. Refer to the catalogue for full data.
