Brand: Yıldız PolietilenEF Reducer · PE100 SDR11 16bar (water) / 10bar (gas)
Home/Products/EF (Electrofusion) Fittings/EF Reducer/EF Reducer · PE100 SDR11 16bar (water) / 10bar (gas)
EF (Electrofusion) Fittings
EF Reducer
WATER: 16 bar · GAS: 10 bar
Selected: 125-110 · 973373111125

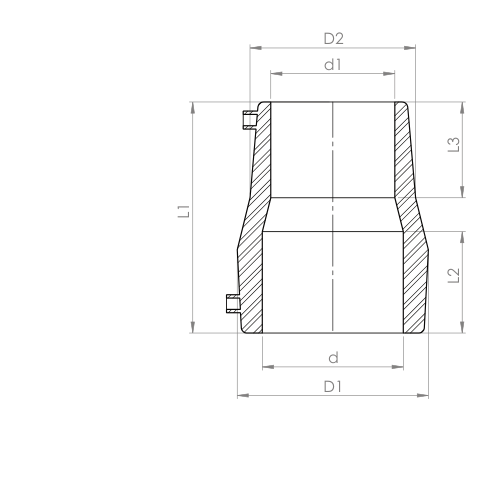

| d | Base Norm | D1 | D2 | L | L1 | L2 | L3 | h1 | R | Unit Weight (kg) | Box | Box Size | Item Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125-110 | IPS | 170.00 | 147.00 | 3.64 | 205.00 | 90.00 | 85.00 | 1.75 | 1.00 | 1.49 | 20 | 41/60/48 | 973373111125 |
| 200-160 | IPS | 254.00 | 203.00 | 5.83 | 301.00 | 128.00 | 110.00 | 2.80 | 1.60 | 2.89 | 8 | 50/60/50 | 973373116200 |
| 63-32 | EN | 95.00 | 64.00 | 1.84 | 120.00 | 60.00 | 45.00 | 0.88 | 0.50 | 0.28 | 80 | 41/60/32 | 973373132063 |
| 75-32 | EN | 109.00 | 53.00 | 2.19 | 145.00 | 65.00 | 60.00 | 1.05 | 0.60 | 0.37 | 64 | 41/60/32 | 973373132075 |
| 63-50 | EN | 95.00 | 72.00 | 1.84 | 120.00 | 60.00 | 45.00 | 0.88 | 0.50 | 0.29 | 72 | 41/60/32 | 973373150063 |
| 75-63 | EN | 109.00 | 89.00 | 2.19 | 145.00 | 65.00 | 60.00 | 1.05 | 0.60 | 0.45 | 56 | 41/60/32 | 973373163075 |
| 90-63 | EN | 112.00 | 78.00 | 2.62 | 151.00 | 68.00 | 64.00 | 1.26 | 0.72 | 0.42 | 40 | 41/60/32 | 973373163090 |
| 110-63 | EN | 143.00 | 90.00 | 3.20 | 155.00 | 60.00 | 67.00 | 1.54 | 0.88 | 0.82 | 24 | 41/60/32 | 973373163110 |
| 125-63 | IPS | 170.00 | 100.00 | 3.64 | 205.00 | 90.00 | 85.00 | 1.75 | 1.00 | 0.96 | 20 | 41/60/39 | 973373163125 |
| 110-90 | EN | 142.00 | 112.00 | 3.20 | 169.00 | 80.00 | 60.00 | 1.54 | 0.88 | 0.95 | 24 | 41/60/39 | 973373190110 |
| 125-90 | IPS | 170.00 | 127.00 | 3.64 | 205.00 | 90.00 | 85.00 | 1.75 | 1.00 | 1.35 | 16 | 41/60/39 | 973373190125 |
All dimensions are indicative. Refer to the catalogue for full data.
