Brand: Yıldız PolietilenEF Coupler · PE100 SDR17 10bar (water) / 6bar (gas)
Home/Products/EF (Electrofusion) Fittings/EF Coupler/EF Coupler · PE100 SDR17 10bar (water) / 6bar (gas)
EF (Electrofusion) Fittings
EF Coupler
WATER: 10 bar · GAS: 6 bar
Selected: 630 · 973326700630

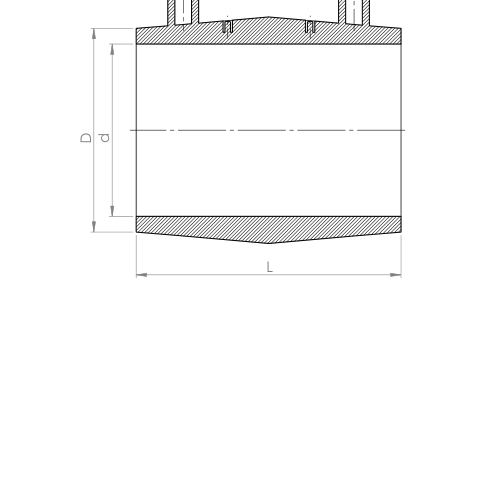

| d | Base Norm | D | D2 | L | h1 | R | Unit Weight (kg) | Item Code |
|---|---|---|---|---|---|---|---|---|
| 630 | IPS | 779.00 | 38.44 | 369.00 | 8.82 | 5.04 | 32.70 | 973326700630 |
| 710 | IPS | 860.00 | 43.33 | 372.00 | 9.94 | 5.68 | 49.20 | 973326700710 |
| 800 | IPS | 980.00 | 48.82 | 400.00 | 11.20 | 6.40 | 60.00 | 973326700800 |
| 900 | IPS | 1105.00 | 54.92 | 455.00 | 12.60 | 7.20 | 80.60 | 973326700900 |
| 1000 | IPS | 1220.00 | 61.02 | 485.00 | 14.00 | 8.00 | 116.40 | 973326701000 |
| 1200 | IPS | 1375.00 | 73.23 | 485.00 | 16.80 | 9.60 | 185.00 | 973326701200 |
All dimensions are indicative. Refer to the catalogue for full data.
