Brand: Yıldız Polietilen

EF End Cap · PE100 SDR11 16bar (water) / 10bar (gas)

Home/Products/EF (Electrofusion) Fittings/EF End Cap/EF End Cap · PE100 SDR11 16bar (water) / 10bar (gas)

EF (Electrofusion) Fittings

EF End Cap

WATER: 16 bar · GAS: 10 bar

Selected: 20 · 973353100020

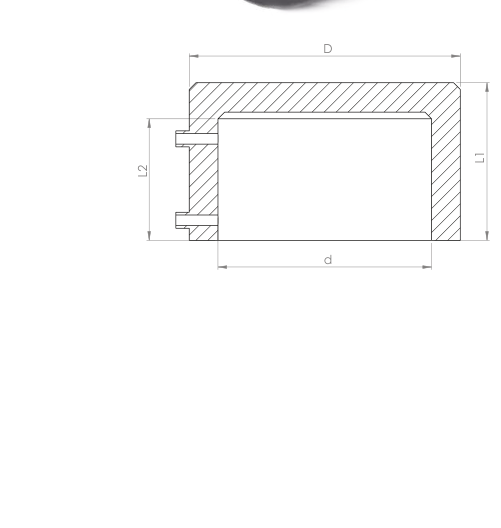

d	Base Norm	D	D2	L	L1	L2	h1	R	Unit Weight (kg)	Box	Box Size	Item Code
20	EN	36.00	1.22	0.58	85.00	80.00	0.28	0.16	0.06	120	27/33/27	973353100020
25	EN	36.00	1.53	0.73	85.00	80.00	0.35	0.20	0.05	120	27/33/27	973353100025
32	EN	42.00	1.95	0.93	87.00	43.00	0.45	0.26	0.09	70	27/33/27	973353100032
40	EN	53.00	2.44	1.17	88.00	44.00	0.56	0.32	0.12	50	27/33/27	973353100040
50	EN	65.00	3.05	1.46	166.00	83.00	0.70	0.40	0.20	120	27/33/27	973353100050
63	EN	78.00	3.84	1.84	114.00	57.00	0.88	0.50	0.31	72	41/60/32	973353100063
75	EN	91.00	4.58	2.19	126.00	63.00	1.05	0.60	0.46	56	41/60/32	973353100075
90	EN	107.00	5.49	2.62	140.00	70.00	1.26	0.72	0.81	42	41/60/39	973353100090
110	EN	135.00	6.71	3.20	169.00	84.00	1.54	0.88	1.17	30	41/60/48	973353100110
125	IPS	153.00	7.63	3.64	160.00	80.00	1.75	1.00	1.37	16	41/60/32	973353100125
140	IPS	184.00	8.54	4.08	111.00	92.00	1.96	1.12	1.30	22	41/60/39	973353100140
160	IPS	203.00	9.76	4.66	118.00	96.00	2.24	1.28	1.74	16	41/60/32	973353100160
180	IPS	231.00	10.98	5.24	150.00	103.00	2.52	1.44	2.80	10	41/60/39	973353100180
200	IPS	256.00	12.20	5.83	143.00	108.00	2.80	1.60	3.10	8	41/60/39	973353100200
225	IPS	285.00	13.73	6.56	149.00	113.00	3.15	1.80	4.16	6	41/60/39	973353100225

All dimensions are indicative. Refer to the catalogue for full data.
