Brand: Yıldız Polietilen

EF Equal Tee · PE100 SDR11 16bar (water) / 10bar (gas)

Home/Products/EF (Electrofusion) Fittings/EF Equal Tee/EF Equal Tee · PE100 SDR11 16bar (water) / 10bar (gas)

EF (Electrofusion) Fittings

EF Equal Tee

WATER: 16 bar · GAS: 10 bar

Selected: 20 · 973338100020

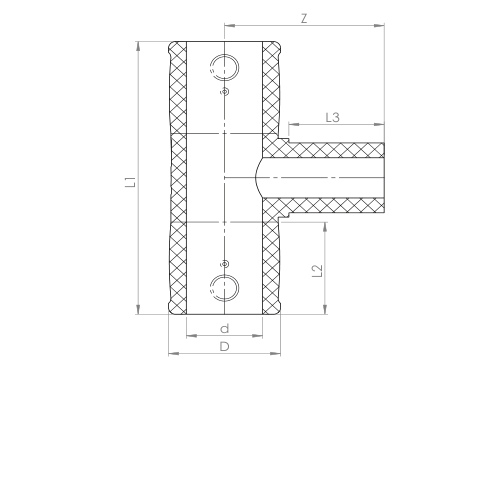

d	Base Norm	D	D2	L	L1	L2	L3	h1	Z	R	Unit Weight (kg)	Box	Box Size	Item Code
20	EN	32.00	1.22	0.58	96.00	39.00	36.00	0.28	52.00	0.16	0.06	70	27/33/27	973338100020
25	EN	32.00	1.53	0.73	96.00	39.00	36.00	0.35	53.00	0.20	0.06	70	27/33/27	973338100025
32	EN	41.00	1.95	0.93	103.00	39.00	46.00	0.45	68.00	0.26	0.10	50	27/33/27	973338100032
40	EN	58.00	2.44	1.17	125.00	46.00	50.00	0.56	82.00	0.32	0.17	60	41/60/32	973338100040
50	EN	68.00	3.05	1.46	140.00	50.00	68.00	0.70	103.00	0.40	0.27	48	41/60/32	973338100050
63	EN	81.00	3.84	1.84	171.00	47.00	44.00	0.88	84.00	0.50	0.38	48	41/60/39	973338100063
75	EN	99.00	4.58	2.19	208.00	54.00	71.00	1.05	120.00	0.60	0.64	24	41/60/39	973338100075
90	EN	109.00	5.49	2.62	234.00	66.00	62.00	1.26	116.00	0.72	0.82	20	41/60/48	973338100090
110	EN	136.00	6.71	3.20	294.00	78.00	77.00	1.54	149.00	0.88	1.61	12	41/60/48	973338100110
125	IPS	164.00	7.63	3.64	164.00	99.00	76.00	1.75	317.00	1.00	2.34	8	41/60/48	973338100125
140	IPS	182.00	8.54	4.08	513.00	114.00	107.00	1.96	221.00	1.12	3.86	4	41/60/39	973338100140
160	IPS	194.00	9.76	4.66	422.00	110.00	107.00	2.24	206.00	1.28	4.38	4	41/60/48	973338100160
180	IPS	227.00	10.98	5.24	532.00	92.00	115.00	2.52	245.00	1.44	9.35	2	41/60/39	973338100180
200	IPS	254.00	12.20	5.83	579.00	112.00	108.00	2.80	248.00	1.60	12.45	2	41/60/48	973338100200
250	IPS	320.00	15.26	7.28	713.00	153.00	148.00	3.50	336.00	2.00	17.90	—	—	973338100250

All dimensions are indicative. Refer to the catalogue for full data.
